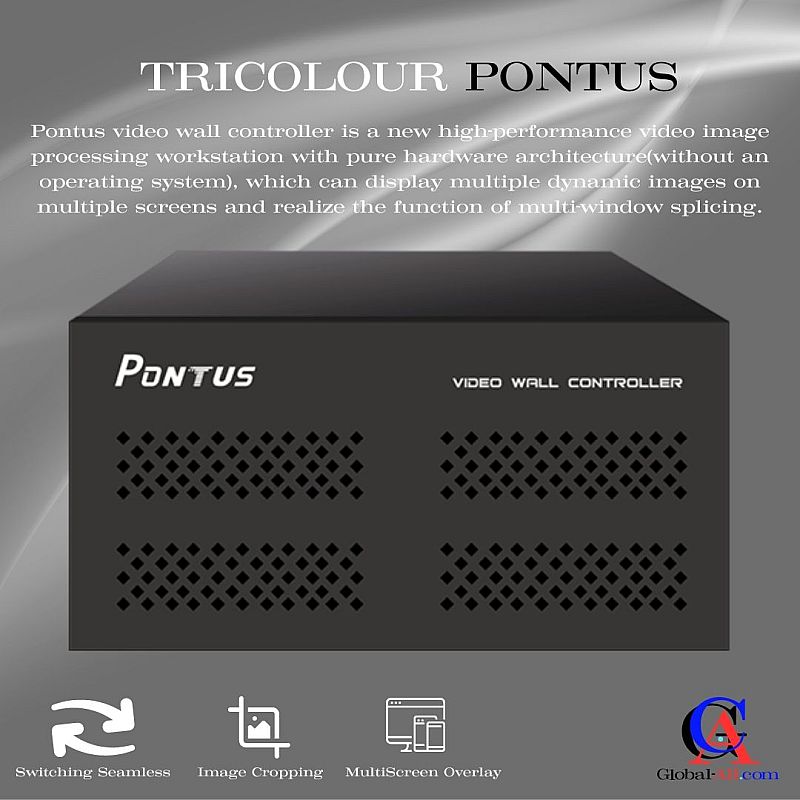

TRICOLOR PONTUS Video Processor Hitam Almunium 4 IN 12 OUT

Pontus video wall controller adalah workstation pemrosesan gambar video berkinerja tinggi baru dengan arsitektur perangkat keras murni (tanpa sistem operasi), yang dapat menampilkan beberapa gambar dinamis pada beberapa layar dan mewujudkan fungsi penyambungan multi-jendela., sehingga menaimplkan minimal 4 gambar yang berbeda pada unit TV Signage.

Spesifikasi :
HDMI Input
Standard HDMI 1.3
Resolution Up to 1920 x 1200
Color Depth 32bits / pixel
HDCP Yes
Customised EDID Yes
Data Rate 4.95 Gbps
Physical Port HDMI Type A

DVI Input
Standard DVI-D digital T.M.D.S. signal in DVI 1.0
Resolution Up to 1920 x 1200
Color Depth 32bits / pixel
Customised EDID Yes
Signal Level T.M.D.S. 2.9V ~ 3.3V
Data Rate 4.95 Gbps
Physical Port 24+5 pins / DVI-I

HDMI Output
Resolution Up to 1920 x 1200
Standard HDMI 1.3
Color Depth 32bits / pixel
Transmission Distance 15 m
Data Rate Yes
Physical Port 4.95 Gbps

DVI Output
Standard DVI-D digital T.M.D.S. signal in DVI 1.0
Resolution Up to 1920 x 1200
Color Depth 32bits / pixel
Transmission Distance 15 m
Data Rate 4.95 Gbps
Physical Port 24+5 pins / DVI-I

Size 1.5U
Dimension (mm) W x H x D : 440 x 320 x 66
Power 100-240VAC/AC , 50-60Hz 100 W
Card Slot 2 in 2 out slots

Size 3U
Dimension (mm) W x H x D : 440 x 320 x 130.5
Power 100-240VAC/AC , 50-60Hz 200 W
Card Slot 4 in 4 out slots

Size 5U
Dimension (mm) W x H x D : 440 x 320 x 219.4
Power 100-240VAC/AC , 50-60Hz 500 W
Card Slot 8 in 8 out slots
